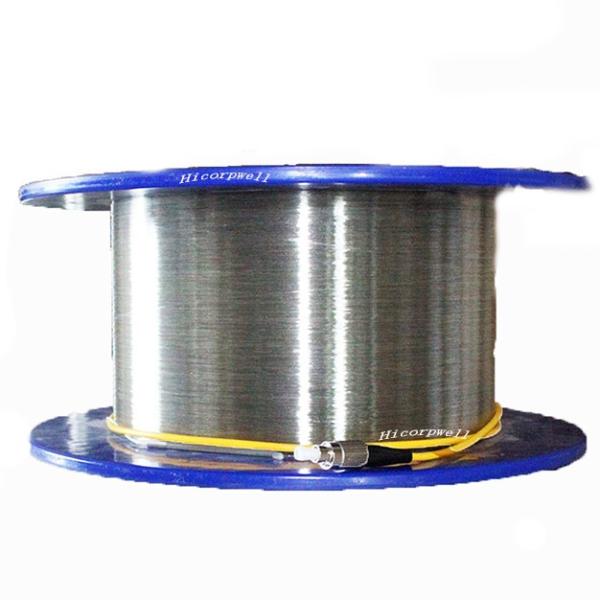

Indoor G652D Aqua Glass Fiber Optic Network Cable With FC PC APC Connectors

Brand Name : HICORPWELL

Model Number : G652D

Certification : IEC 60794-2-10/11

Place of Origin : China

MOQ : 100KM

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 30000KM Per Week

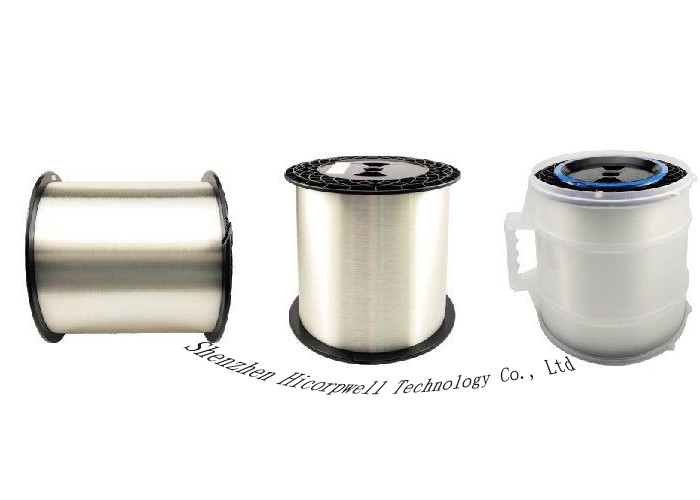

Packaging Details : 25km/Reel, then pack in a carton box for 6 reels fibers

Fiber Type : G652D

Connectors : FC PC

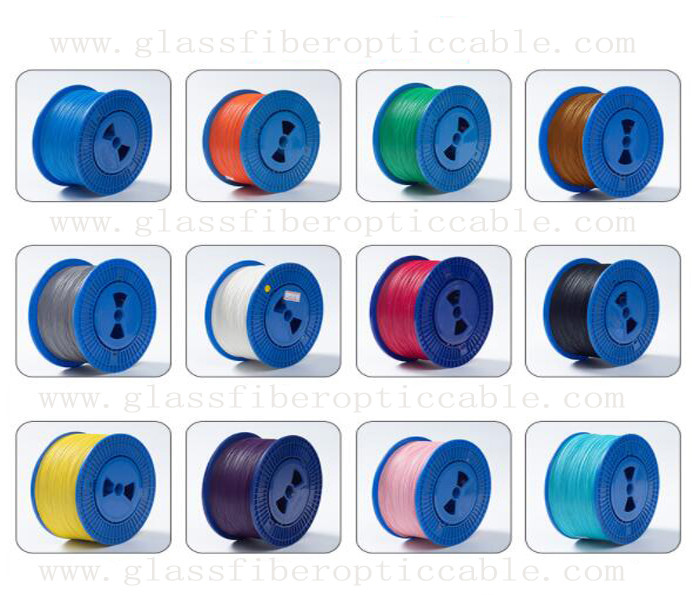

Paintcoat Color : Aqua,yellow ,blue Or Others

Cable Purpose : ODTR or FO Cable

1310nm : 0.36-0.22 DB/Km

1550nm : 0.5-0.4 DB/Km

Contact Now

G652D Indoor Glass Optical Bare Fiber with FC PC APC Connectors

we have all type of glass fibre optic you need.

--- glass fibre optic cables ,Pigtails,patch cords,loopback modules

--- LC,SC,ST,FC,MTRJ,MU SMA,MTP/MPO
--- Sinlge Mode,Multimode,OM1,OM2,OM3,10G OM4
--- Armored ,Un armored
---- multi Core,Mode condiioning
--- Special Tactical etc.

Indoor G652D Aqua Glass Fiber Optic Network Cable With FC PC APC ConnectorsIndoor G652D Aqua Glass Fiber Optic Network Cable With FC PC APC Connectors

Specifications & Performances

Fiber Type Singlemode(APC Polish) Multimode(PC/Flat Polish)
Parameter Standard Low loss Standard Low loss
Insertion Loss Maximum <0.70 <0.35db <0.70dB <0.35dB
Retrurn Loss >60dB None
Durability 500Matings
Operating Temperature -40C to 80C
Test Wavelength 1310nm 850nm
Material

OS1

9/125μm

(1310/1550nm)

OM1

62.5/125μm

(850/1300nm)

OM2

50/125μm

(850/1300nm)

OM3

50/125μm

(850/1300nm)
Attenuation (dB/km) Typical Values 0.4/0.3 3.5/1.5 3.5/1.5 2.7/0.7
Minimum Bandwidth (MHz•km) N/A 400/400 160/500 - 1500/500 -
Primary Buffer Diameter 250μm 250μm 250μm 250μm
Strength Members 4x1320 Decitex Kevlar element
Storage /Operating/ Installation Temperature -20℃~+60℃
Sheath material PVC or LSZH Sheath
Fiber Optic Cable Specification
Fiber Count 2 4 6 8 12 16 24
Nominal Outer Diameter(mm) 5.0±0.2 5.1±0.2 5.3±0.2 5.9±0.2 6.6±0.2 7.5±0.2 8.2±0.2
Nominal Weight (kg/km) 19 21 23 28 34 46 57
Max. Tensile Load Long Term (N) 220
Short Term (N) 660
