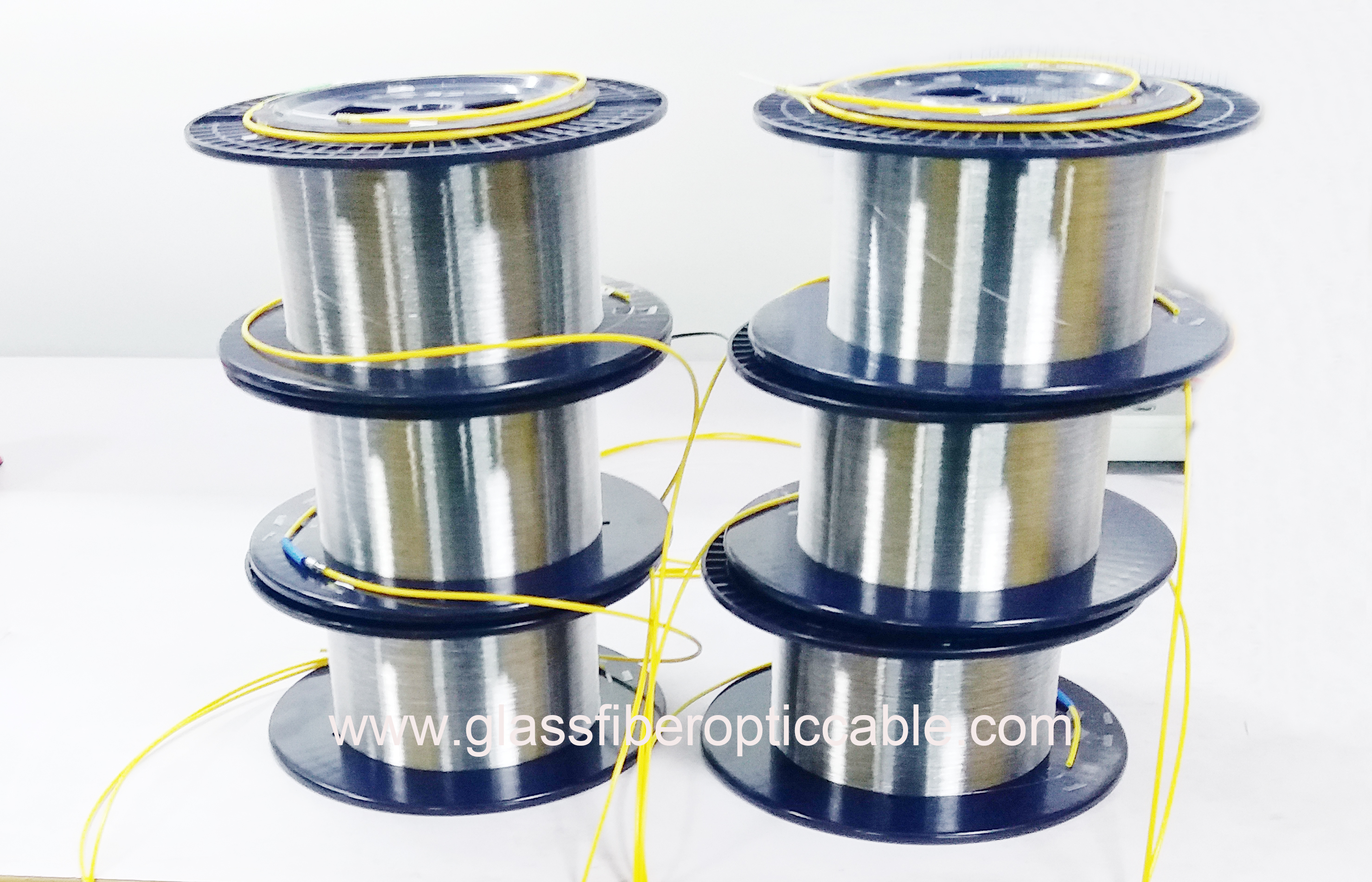

SM G652D G657A1 MM 50/125 62.5/125 Bare Optical Fiber used For FO Cables
A bare fiber, a core with its cladding surrounded by a coating-is still very sensitive to the adverse environment regardless of
how perfect the coating is . Thus , in practice, you will find a fiber only in some protective enclosure, which is called fiber-optic cable,
Since optical fiber is the main transmission medium in modern telecommunications .
Bare glass fibers are based on silica or other glass materials. The glass surface is susceptible to abrasion and mechanical flaws. To protect the cable from the environment, the buffer coating or jacket fits over the core and cladding.
The diameter ranges from 250μm to 900μm, usually 250um for single mode and multimode fibers, but 400um is also very common in polarization maintaining fibers. It provides mechanical protection while allowing for flexibility in the fiber.
It provides mechanical protection while allowing for flexibility in the fiber.
The buffer coating is usually made of a soft or hard plastic such as acrylic or nylon. Kevlar is a popular choice for the jacket material.
It is strong and used to bundle and protect the loose tubes or fibers in the cable.
Kevlar protects the fibers when the tension is placed on the cable.
The color of this jacket typically depends on the type of fiber, single mode fibers typically wear a yellow
jacket and multi-mode fibers wear an orange jacket.
| Type | Standard,Master |
| Style | LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type |
9/125 SMF-28 or equivalent (Singlemade) OS1
50/125, 62.5/125 (Multimode) OM2&OM1
50/125, 10G (Multimode) OM3
|
| Cable Type | Simplex, Duplex (Zipcord)
Φ3.0mm, Φ2.0mm, Φ1.8mm
Φ1.6mm PVC or LSZH
Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master)
≤ 0.25dB (For Singlemode Standard)
≤ 0.25dB (For Multimode)
Tested by JDS RM 3750 |
Return Loss
(For Singlemode) | UPC ≥ 50dB
SPC ≥ 55dB
APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750 |
| Repeatability |
±0.1dB
|
| Operating temperature | -400C to 850C |
Geometry Requirement
(For Singlemode) | Ferrule Endface Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30 μm (For Master)
Apex Offset ≤ 50 μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Ordering options:
*Patch cord or pigtail
*Fiber type:9/125um(SM),50/125um(MM),62.5/125um(MM)
*Endface type: PC, APC,UPC
*Cable number:duplex,simplex
*Cable diameter:0.9mm,2.0mm,3.0mm......
*Cable length: customized
*Cable material: PVC,LSZH,OFNR,OFNP
Glass Bare Fiber Info From Hicorpwell.pdf
