GJFJV Multi-Purpose Distribution Cable With 900um Flame-Retardant Tight Buffer Fiber
As the optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn
as strength member units, and the cable is completed with a PVC or LSZH
(Low smoke, Zero halogen, Flame-retardant) jacket.
Product Detail
| Product name | Indoor Distribution Cable |
| Fiber count | 24-144 |
| Fiber options | OS1,OS2,OM1,OM2,OM3 |
| Cable Structure | Tight buffer |
| Installation Tensile | 1000N |
| Jacket Material | PVC/LSZH/TPU/PE/OFNR/OFNP |
| Bend Radius(under installation) | 20 x External Diameter of cable |
| Strength member | Kevlar Aramid Yarn |
| Application | Indoor any purpose cable distribution |
| Product Keywords | optical cable 48cores(GJFJV) |

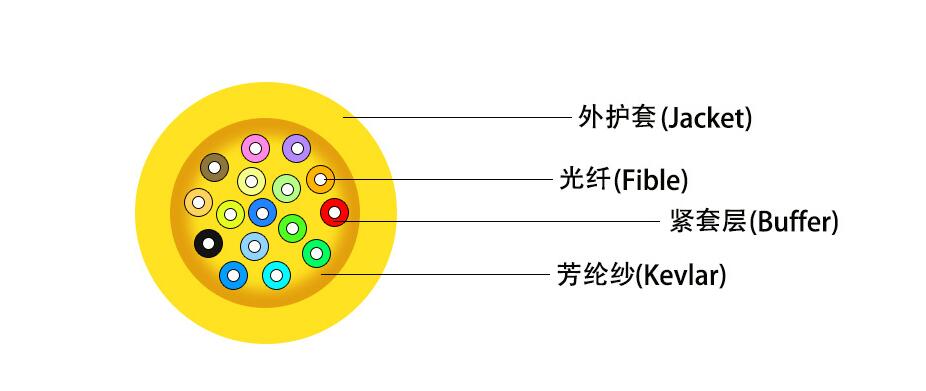

Structure: Tight buffer fiber, Aramid yarn, PVC/LSZH Jacket
Characteristics:
1. Excellent stripper ability with tight buffered fiber
2. Excellent flame retardant properties
3. High tensile strength due to aramid strength member
4. Excellent corrosion resistant, waterproof, flame retardant and
5. environmental- friendly properties of the outer sheath
Cable diameter
| | MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter | 900±50μm |
Application
1.Used in pigtails and patch cords
2.Used as interconnect lines of equipments, and used in optical connections
in optical communication rooms and optical distribution frames
3.Used in indoor and outdoor cabling, especially used as distribution cable
Characteristics
Good mechanical and environmental characteristics
Flame retardant characteristics meet the requirements of relevant standards
The mechanical characteristics of jacked meet the requirements of relevant standards
Soft,flexible,easy to lay and splice,and with big capacity data transmission
Meet various requirements of market and clients.
