Straight bundles Fan-out bundles Simple and complex furcation bundles Customized Glass Bare Fiber Optic Light Guide
Our high quality fiber optic bundles can be made with any fiber and your choice of several configuration and construction possibilities.
In addition, a number of connectors, including all standard connectors—or custom ferrules, machined in-house—are available.
Hicorpwell ensures the highest quality and best transmission for fiber optic bundles, while working within the boundaries of your application.
In order to optimize your bundle, we take several parameters into consideration: packing efficiency, fiber area efficiency,
Numerical Aperture optimization, fiber transmission, reflections, and an error factor (which includes numerical aperture discrepancies).
Straight bundles
Straight bundles include one input and output. However, they could be not as basic at they seem. Indeed in this configuration, bundles can take a large number of geometries with linear, hexagonal, round, array disposal etc. We can address each fiber independent of I/O disposal. Main applications would be illumination and excitation bundles, endoscopy, imaging systems, optical power transportation or mere offset systems for spectroscopy signal collection. Regarding the number of fiber and your application we will set an optical connector, a capillary or a more complex mechanical device.
Fan-out bundles
Fan-out bundles have to be seen like a common junction split from two to numerous legs. Each leg will contain one fiber and is customizable. Common junction is also of course designed regarding your specification. On your side, the use of this kind of bundle is multiple: gathering light sources for illumination or laser pumping, multiple coupled detectors, sample cartography
Simple and complex furcation bundles
The main difference between Fan-Out and Furcation bundles resides in the fact that you can set as many fiber as you want in each leg. This makes the difference for reflection, fluorescence, backscattering or Raman measurements where you need to illuminate and collect independently. For this purpose we can add filters, lenses or other terminations.
Application :
- Spectroscopy
- Sensors & Probes
- High power source
- Laser delivery
- Mono-chromators
- Reflective sensors
- Colorimetry
- Pyrometry
- Fluorescence
- Illumination
- Chemical analysis
Notes:
All bundles and assemblies are custom designed to meet your specifications. All standard connectors (SMA 905, SMA 906, ST, FC)
are available—or custom ferrules, machined in-house to your specifications.
We strive to ensure the accuracy of all information provided; however, we imply no warranties and
disclaim any liability in connection with the use of this information.

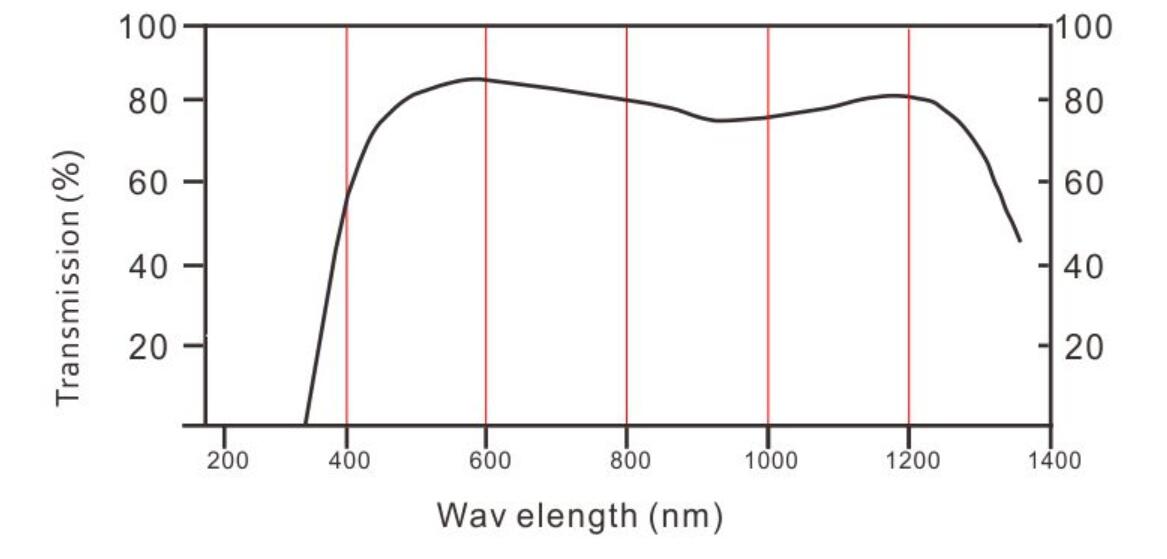

Refer to individual fiber data sheets for more information and to determine the best fiber for your application.
NA is measured at the 95% intensity angle.
| Bundle size (core diameter) | 1.8mm/2.0mm/2.5mm/3.0mm /4.0mm (can be customized) |
| Cable Length | 3.5m / 4.0m / 4.5m / 5.0m (can be customized) |
| Bundle Type | Fused & Bonded |
| Sheath Type | Stainless Steel Monocoil Mesh Grid Silicone Goating |
| Available bulb type | LED/Halogen/Xenon |
| Adaptor compatible | Storz / Olympus / Wolf / Zeiss / Pentax |
|
|
Straight bundles Fan-out bundles Simple and complex furcation bundles Customized Glass Bare Fiber Optic Light Guide Images
|
