Hicorpwell OptiTap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.

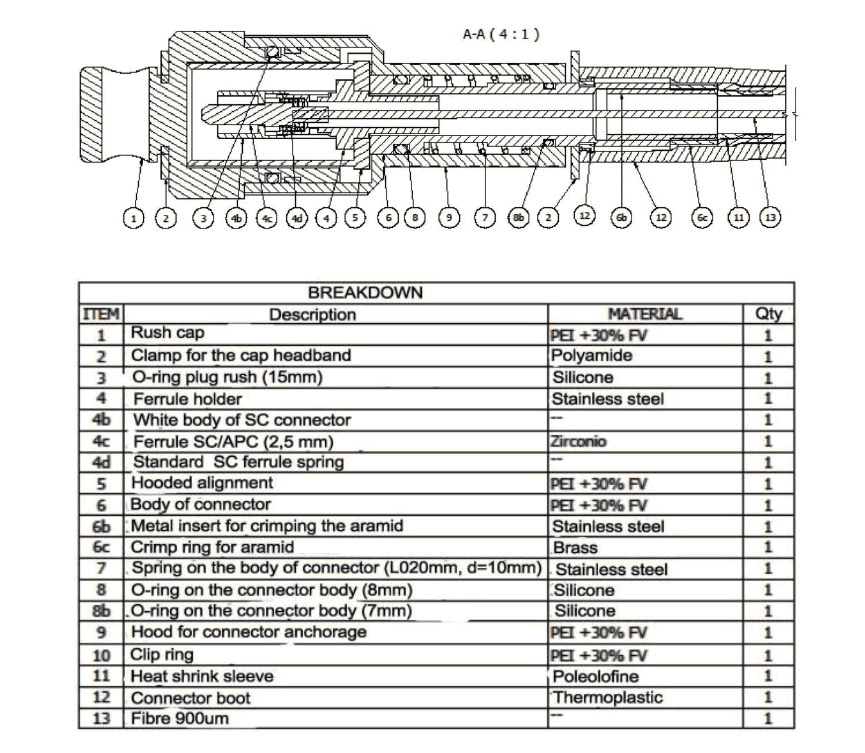

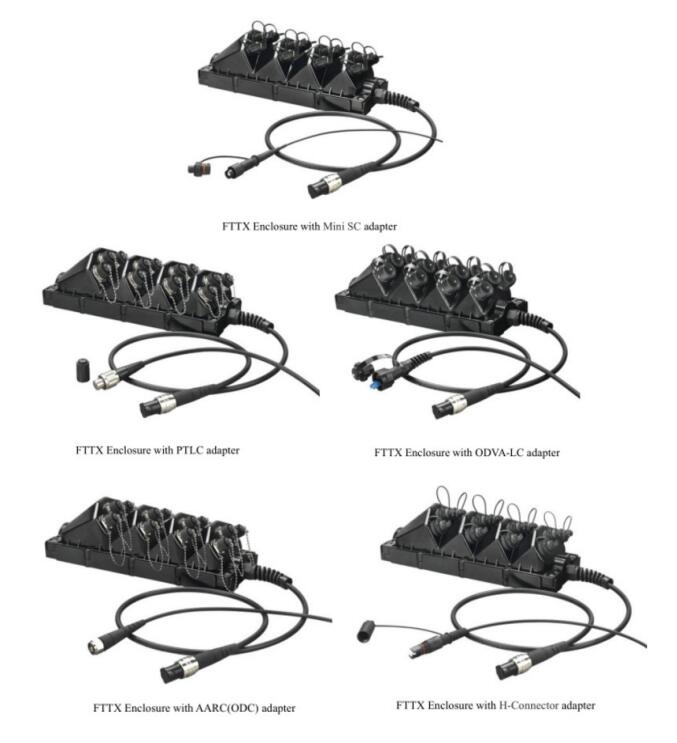

The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle.
The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.
Key Features
- 9/125 Singlemode fibre for long distance, high bandwidth connectivity
- Cost includes leading brand of portable, deployable reel with 3rd flange & friction break
- Military Tactical fibre is designed for harsh environments and repeated flexing
- UK Manufactured product, individually serialised for traceability, shipped with test results
- Operating Temp Range -55- C to +85- C
- 2, 4, 8 and 12 fibre options and Flight Cases are available
Optical performance
1. Insertion loss / IEC 61300-3-34
2. Singlemode typ. ≤ 0.2 dB 97% ≤ 0.45 dB
3. Multimode typ. ≤ 0.2 dB 97% ≤ 0.50 d
4, Return loss / IEC 61300-3-6 singlemode ≥ 50 dB
Product Parameters
| Connector | End A | Corning OptiTap Patch Cord |
| End B | LC,or SC,FC,ST...... |
| Cable Diameter(mm) | 4.0mm/ 7.0mm/ 8.0mm |
| Material of jacket | TPU |
| Fiber Core | 4,8,12 or specified |
| Mode | Singlemode | Multimode |
| Operating Wavelength(nm) | 1310/1550 | 850/1310 |
| Polishment | UPC | APC | UPC |
| Insertion Loss(Max.dB) | 1.5 | 1.0 |
| Return Loss(Min.dB) | 50 | 35 |
| Mechanical Features | Plug | ≤1000N(main cable) |
| Socket | ≤100N(Branch cables) |
| Grade | IP68 |
| Mating time | 500 Min |
| Durability(Max.dB) | 0.2 |
| Reaptability(Max.dB) | 0.5 |
| Operating Temperature(℃) | -40~+85 |
| Storage Temperature(℃) | -40~+85 |
Application :
Fiber-to-the-Antenna (FTTA)
Latest and next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE,etc.)
deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast.
Automation and industrial cabling
The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of shock, strongest vibration, or accidental misuse.
Surveillance systems
Security camera manufacturers choose those connectors for its compact size and robust design. Its assemblies are easy to install even in areas difficult to access and provide highest installation safety.
Naval and ship building
The high corrosion resistance convinced both naval and civil ship builders to use waterproof connector's assemblies for on-board communication systems.
Broadcast
we offer a range of mobile cabling systems and its assemblies for temporary cable installations
required for the broadcasting of sport events, car racing, etc.and for temporary connections in case of natural hazards.
The IP67 connector has been designed specifically for temporary, deployable applications, to provide a secure, reliable fibre connection. The duplex IP67 plugs can be mated with corresponding IP67 sockets bulkhead/panel mounted and patched into equipment, enabling a water and dust proof mating. Each plug comes with a cap which is retained on a lanyard when not in use.
