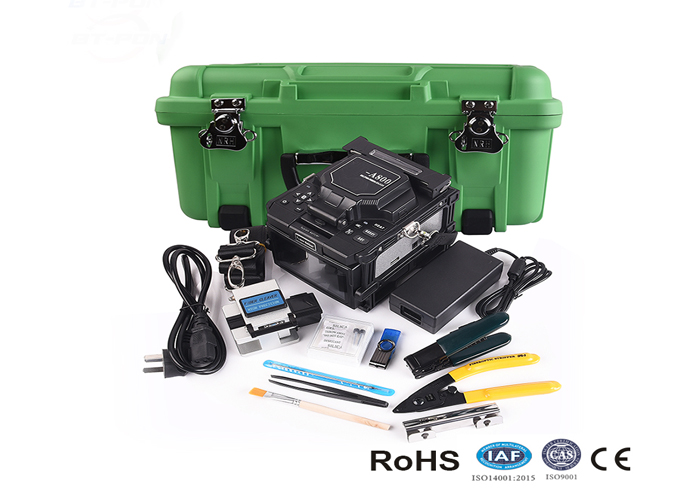

Automatic Core to Core Signal Fire Optical Fiber Equipment 6 Seconds Motor Arc Japan Splicing Machine C10 Fusion

  • 1
  • 2
  • 3

Brand Name : Hicorpwell

Model Number : HCW-A800

Certification : ISO9001

Place of Origin : China

MOQ : 1 pcs one pcs in lplastic box ,then in the carton

Price : 350-790 USD per set

Delivery Time : 5-8 days

Packaging Details : Packed in carton with protection foam, Size 43cm*37cm*27cm, G.W.6.5kg, 2.10kg including battery,160mm(L)x136mm(W)x140mm(H)

Type : Testers &Tools

Typical splice loss : SM:0.02dB MM:0.01dB

Return loss : >60dB

Splicing program : 40 groups

Tube heating time : 20 seconds

Operate mode : Manual,Automatic

Contact Now

Automatic Core to Core Signal Fire Optical Fiber Equipment 6 Seconds Motor Arc Japan Splicing Machine C10 Fusion
Product Specification
Applicable fiber
SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Diameter of cladding
80 -150μm
Diameter of coating
160 – 900μm
Typical splice loss
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
Return loss
>60db
Fiber cleaved length
10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program
40 groups
Operate mode
Manual, Automatic
Auto-heating
Available
Typical splicing time
6 seconds
Tube heating time
20 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification
250X(X or Y view), 125X(X and Y view)

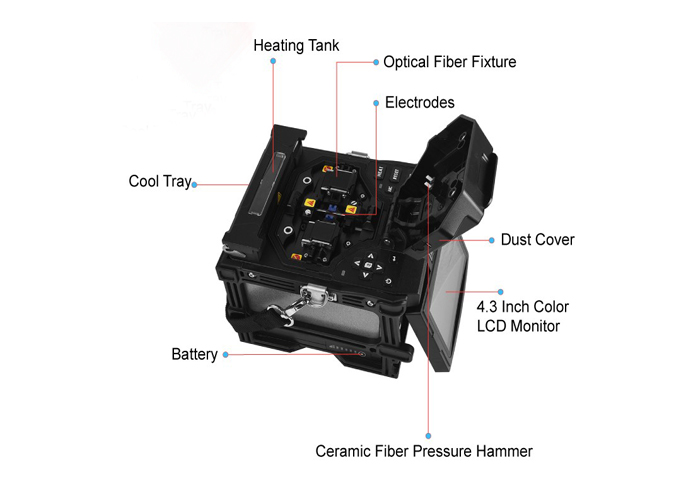

Viewing method and display
2 CMOS cameras, 4.3 inch color LCD monitor
Storage of splice result
4000 results
Loss evaluation
Available
Tension test
1.8-2.2N
Interface
GUI menu interface, easier operation
Battery capacity
5200mAh Li-battery, typical 250 cycles(splice and tube heat)
Power supply
Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V

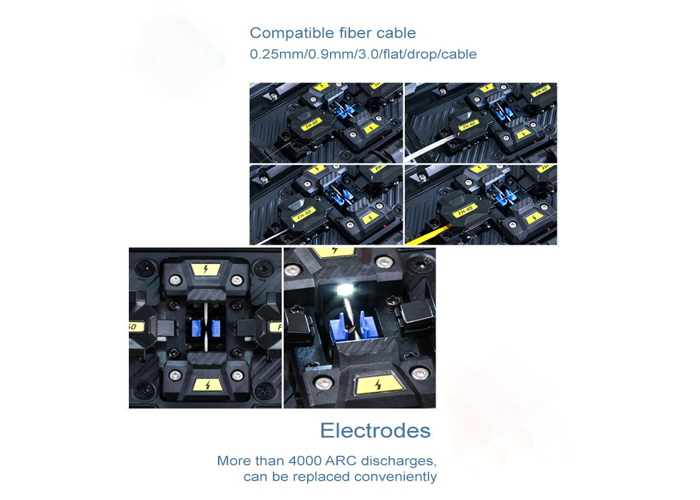

Electrode life
More than 4000 ARC discharges, can be replaced conveniently
Terminals
USB 2.0 port, for uploading splice results and upgrading software
Operating condition
Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃～+50℃;Wind speed: max 15m/s
Dimension
160mm(L)x136mm(W)x140mm(H)
Weight
2.10kg including battery
Package
Packed in carton with protection foam, Size 43cm*37cm*27cm, G.W.6.5kg

Automatic Core to Core Signal Fire Optical Fiber Equipment 6 Seconds Motor Arc Japan Splicing Machine C10 FusionAutomatic Core to Core Signal Fire Optical Fiber Equipment 6 Seconds Motor Arc Japan Splicing Machine C10 FusionAutomatic Core to Core Signal Fire Optical Fiber Equipment 6 Seconds Motor Arc Japan Splicing Machine C10 Fusion
