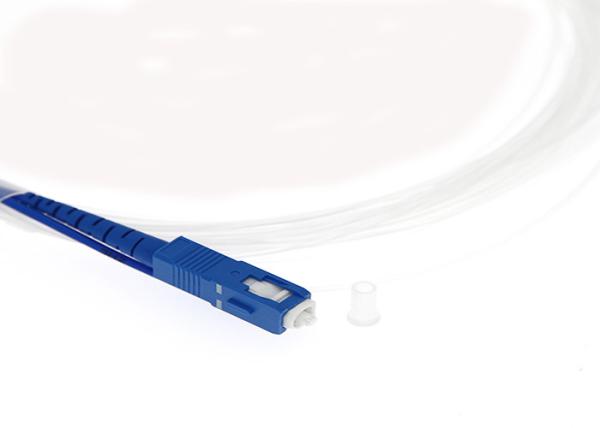

Indoor Bare Fiber 1KM 2KM 5KM 10KM G657A1 G657A2 invisible fiber bare optical cable fiber cabl lc

Name: Indoor Bare Fiber 1KM 2KM 5KM 10KM G657A1 G657A2 invisible fiber bare optical cable fiber cabl lc
Brand: HICORPWELL
Price: 1 USD

Indoor Bare Fiber 1KM 2KM 5KM 10KM G657A1 G657A2 invisible fiber bare optical cable fiber cabl lc Manufactures

Brand Name : HICORPWELL

Model Number : G657A2 invisible fiber

Certification : IEC 60794-2-10/11

Place of Origin : China

MOQ : 100M per reel

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 1000KM Per Month

Packaging Details : Standard length: 100m/roll Packing:28*20*8cm;N.W.:4KG; Neutral packing or Standard packing

Fiber Type : G657A1 G657A2 invisible fiber

Packing Size : 28*20*8cm

Certificate : IEC 60794-2-10/11

G657A2 Mode Field Diameter : 9.8µm@1550nm

G652D fibre Mode Field Diameter : 10.4µm @1550nm

Contact Now

G652D and G657A2 specifications refer to the glass and cable construction of optical fibre and are generally the fibres of choice in optical fibre patch leads for singlemode systems.

ITU-T G652D singlemode fibres have been used in all networks for more than 30 years. Being backwards compatible, this makes for easier maintenance/repair (splicing fibres of the same type).

The G652D fibre Mode Field Diameter is 10.4µm @1550nm. G652D fibres provide marginally lower loss transmission, which is better in facilitating long distance communication links (up to and greater than 100km). However, G652D fibres have limited bend resistance.
G657A2 fibres are used in advanced access cable network installation, where higher bend resistance is required for smaller cable jointing pits and also allows for cable and hardware miniaturisation.

G657A2 fibres are fully compatible with G652D fibres.

The G657A2 fibre Mode Field Diameter is 9.8µm@1550nm. Splice losses are slightly higher when splicing the two different fibres together.
G657A2 fibre has greater resistance to bending (macrobend) losses (see figure below), and facilitating low-cost deployment techniques.

G675A2 bending insensitive single-mode fibre encompasses all the features and provides good resistance to maro-bending.

It has low macro-bending sensitivity and low water-peak level.

It is comprehensively optimized for use in O-E-S-C-L band (1260 -1625 nm).

It offers good resistance to additional losses due to low macro-bending in the 1625 nm wavelength region.

This not only supports L-band applications but also allows for easy installation without excessive care when storing the fibre.

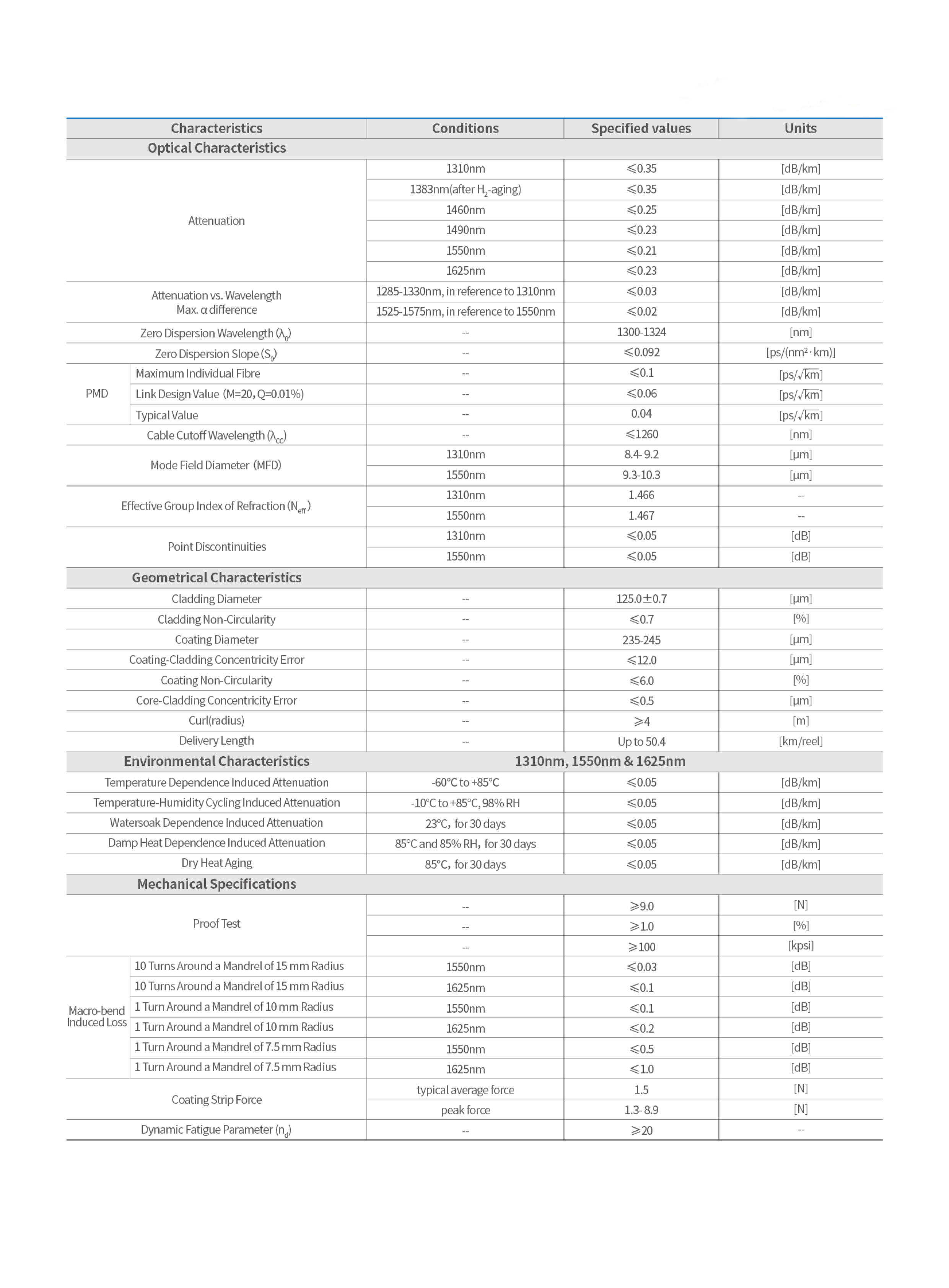

Details About The Product Code and Information :

Indoor Bare Fiber 1KM 2KM 5KM 10KM G657A1 G657A2 invisible fiber bare optical cable fiber cabl lc

Glass Bare Fiber Info From Hicorpwell.pdf
